Autel MaxiIM Key Programming and Diagnostic Platform | IM608PRO
Part reference IM608PRO
- Free tracked delivery within New Zealand
- Typically arriving in 3 to 10 working days
- Prices include GST (15%)
- Fitment support: send your make, model and year
Review the product notes or send us your vehicle and replacement-part details before ordering.
Product details
Kauri Auto Parts — brand-new aftermarket and OE-replacement parts, dispatched from within New Zealand. Every price includes GST.

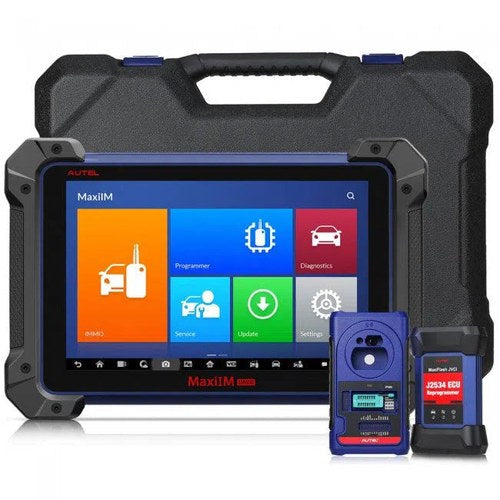

Autel MaxiIM IM608 is an all-in-one key-programming and diagnostic platform built around a 10.1-inch Android touchscreen tablet. It combines advanced key programming, all-system diagnostics and maintenance services, with an XP400 key programmer and MaxiFlash ECU programmer.
Functions include guided and expert key learning, IMMO ECU reset and coding, live data, active tests, ECU coding, and transponder and EEPROM/MCU read/write.
The diagnostic and IMMO software is English only. The 10.1-inch display has 1920x1200 resolution, with 2GB RAM and 64GB on-board memory.
Fits:
- BMW
- Honda
- Holden — Software, Supported
- Audi — MQB, Key, Programming
- Volkswagen
- Mercedes-Benz — Infrared, Key, Reading
- Mercedes-Benz — Infrared, Key, Slot
- Mercedes-Benz
- Skoda
- Audi
- Volkswagen
| Brand | Autel |
|---|---|
| Part No. | IM608PRO |
| Condition | New |
| Part Type | Diagnostic Tool |
| Operating System | Android 4.2, KitKat |
| Processor | Samsung Exynos hex-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) |
| Memory | 2GB RAM 64GB On-board Memory |
| Display | 10.1-inch LED capacitive touch screen with 1920x1200 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) ; USB 2.0 ; BT v.2.1 + EDR ; SD Card (Support up to 32GB) ; HDMI |
| Camera (rear) | 8.0 Megapixel, AF with Flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio input/output | Microphone ; Dual Speakers ; 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 15000 mAh 3.8 V lithium-polymer battery ; Charging via 12 V AC/DC power supply with the temperature between 0 |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp. | -20 to 50F |
| Storage Temp. | -20 to 60·F |
| Protocol | ISO9141-2, ISO14230-2,ISO15765-4, K/L-Line, Flashing Code,SAE-J1850 VPW, SAE-J1850PWM,CAN ISO11898, Highspeed, ; Middlespeed, Lowspeed and Singlewire CAN,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0,TP1.6SAE J1939, SAE J1708, Fault-Tolerant CAN |
| Diagnose Software | English Only |
- Samsung Exynos hex-core processor
- 10.1-inch 1920x1200 capacitive touchscreen
- 2GB RAM and 64GB on-board memory
- XP400 key programmer and MaxiFlash ECU programmer
- 15000 mAh 3.8 V lithium-polymer battery
- Input voltage: 12 V (9-24 V)
Check the vehicle list above against yours before you order. Unsure? Tell us your make, model, year and engine and we'll confirm it. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.
Specifications
- Brand
- Autel
- Product type
- Tools & Workshop > Diagnostic Tool
- Part reference
- IM608PRO
- Title
- Default Title
Vehicle compatibility
Compatibility can vary by model, production date and specification. Review the product notes or send a fitment enquiry before ordering.
