Ignition & Electrical > Spark Plug
Bosch Laser Platinum Spark Plug for Holden and Mazda | HR8NPP302
Part reference HR8NPP302
- Free tracked delivery within New Zealand
- Typically arriving in 3 to 10 working days
- Prices include GST (15%)
- Fitment support: send your make, model and year
Review the product notes or send us your vehicle and replacement-part details before ordering.
Product details
Kauri Auto Parts supplies brand-new parts only — aftermarket and OE-replacement — dispatched from within New Zealand. The price you see includes GST.

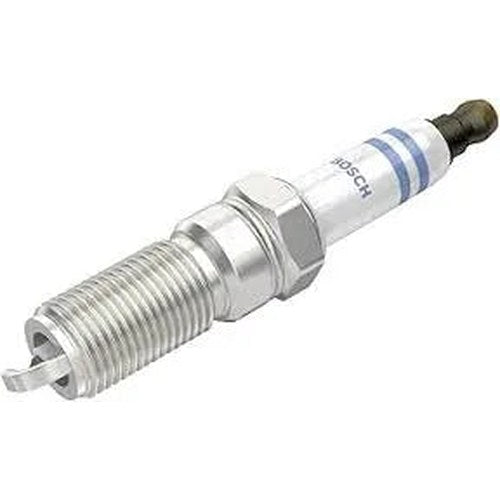

Bosch Laser Platinum spark plug with a platinum centre electrode tip, one ground electrode and a conical seal seat.
Suits Holden Commodore VE-VF and Mazda 3 and 6 applications. Cross-reference number 0242229739 can be checked against the plug being replaced.
The connection terminal has a DIN/SAE head that cannot be loosened. Specified dimensions include an M 14 x 1,25 thread, 25 mm thread length and 16 mm hex size.
Fits:
- Holden Commodore
- Mazda 3
- Mazda 6
| Brand | Bosch |
|---|---|
| Part No. | HR8NPP302 |
| Condition | New |
| Part Type | Spark Plug |
| Bosch 10 Digit Number | 0242229739 |
| Key Description | Spark plug, Laser Platinum |
| Connection Terminal | DIN/SAE head cannot be loosened |
| Electrode Gap (mm) | 1.1 |
| Center Electrode Core Material | NiY+Cu |
| Center Electrode Tip Material | Pt |
| Diameter Center Electrode (mm) | 0.7 |
| Ground Electrode Material | NiY+Cu |
| Ground Electrode Quantity | 1 |
| Hex Size (mm) | 16 |
| Tightening Angle | 15 |
| Resistor value (kOhm) | 6 |
| Spark position (mm) | 4 |
| Seal seat | conical |
| Length (mm) | 84.1 |
| Thread (mm) | M 14 x 1,25 |
| Thread Length (mm) | 25 |
| Tight. Torque (Nm) | 15 |
| Net Weight (kg) | 0.045 |
- Electrode gap: 1.1 mm
- Centre electrode: NiY+Cu core with Pt tip
- Ground electrode: NiY+Cu, quantity 1
- Resistor value: 6 kOhm
- Tightening torque: 15 Nm
- Length: 84.1 mm
The vehicle list above is a guide — confirm yours against it, or tell us your make, model, year and engine and we'll confirm it for you. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.
