Mudstuck Winch | 4WD MUD0004
Part reference 4WD MUD0004
- Free tracked delivery within New Zealand
- Typically arriving in 3 to 10 working days
- Prices include GST (15%)
- Fitment support: send your make, model and year
Review the product notes or send us your vehicle and replacement-part details before ordering.
Product details
Kauri Auto Parts — brand-new aftermarket and OE-replacement parts, dispatched from within New Zealand. Every price includes GST.

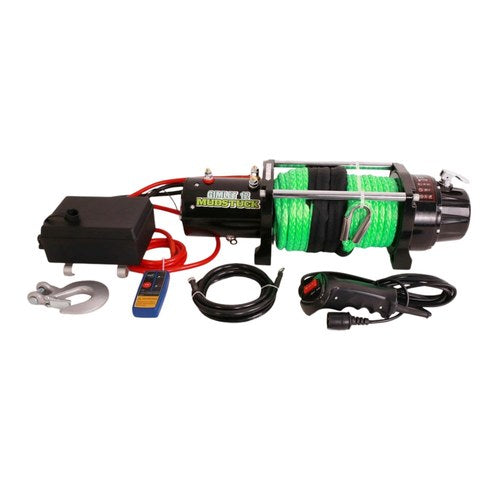

Mudstuck 12000lb Winch – Built for Bigger Jobs and Harder Pulls
When you need maximum pulling power — trust the Green.
Designed for serious recovery work, the Mudstuck 12000lb winch is the top choice for heavy-duty 4x4 builds, trailers, and work vehicles. Developed over two years and battle-tested for 12 months by Green Motorsports in tough New Zealand terrain, this winch delivers strength, speed, and reliability when it matters most.
From recovering loaded trucks to hauling vehicles onto trailers, this is the muscle you want on your bumper. Trusted by off-roaders and tradies alike — don’t settle for less.
Rollers are designed for steel cables.
Confirm this part number against your vehicle's existing part before ordering.
| Brand | Mudstuck |
|---|---|
| Part No. | 4WD MUD0004 |
| Condition | New |
| Part Type | Winch |
| Rated pull | 12,000lbs / 5,443kg (single line) |
| Motor | 12V permanent magnet, 5.2hp |
| Gearbox | NGWN planetary gear, 216:1 reduction |
| Drum size | 64mm x 224mm |
| Battery leads | 1.83m |
| Rope | 27m of 9.5mm Dyneema (rated to 7,647kg) |
| Line speed | 10.8m/min |
| Amp draw under load | 360A |
| Winch weight | 28kg |
| Overall dimensions | 535mm x 162mm x 170mm |
- Heavy-duty 4x4s, utes, trucks, and off-road rigs
- Worksite or commercial recovery vehicles
- Trailer-mounted lifting or winching tasks
- Serious off-road recovery situations
- IP67 rated for dust and water resistance
- Powerful 12V 5.2hp motor
- Includes both wired and wireless remotes
- Turn clutch for fast, easy control
- NZ-tested, proven performance
- Fitted with strong 27m Dyneema rope
- Rated pull: 12,000lbs / 5,443kg (single line)
- Motor: 12V permanent magnet, 5.2hp
- Gearbox: NGWN planetary gear, 216:1 reduction
- Drum size: 64mm x 224mm
- Battery leads: 1.83m
- Rope: 27m of 9.5mm Dyneema (rated to 7,647kg)
- Line speed: 10.8m/min
- Amp draw under load: 360A
- Winch weight: 28kg
- Overall dimensions: 535mm x 162mm x 170mm
- Mudstuck 12000lb Winch
- Fairlead
- Wired Remote
- Wireless Remote
- Dyneema Rope (27m)
- Plus a .
Match the part number against the one you're replacing before you order. Unsure? Tell us your make, model, year and engine and we'll confirm it. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.
