Accessories & Towing > Winch
Mudstuck Winch | 4WD MUD0005
Part reference 4WD MUD0005
- Free tracked delivery within New Zealand
- Typically arriving in 3 to 10 working days
- Prices include GST (15%)
- Fitment support: send your make, model and year
Review the product notes or send us your vehicle and replacement-part details before ordering.
Product details
Kauri Auto Parts — brand-new aftermarket and OE-replacement parts, dispatched from within New Zealand. Every price includes GST.

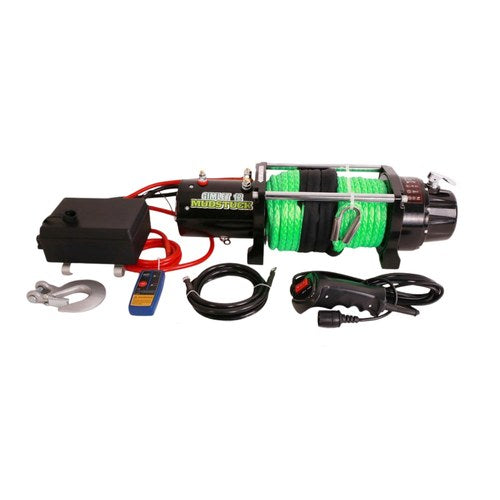

Mudstuck 12000lb 24V Winch – Extra Voltage, Extra Muscle
The Mudstuck 12000lb 24V winch is built for serious users who need consistent pulling performance and reliability under load. Developed over two years and tested for 12 months in New Zealand's harshest conditions by Green Motorsports, this winch has earned its reputation as a workhorse in the field.
If your setup runs a 24V system and you're regularly tackling tough recoveries, this is the winch to get. It’s made for those who don’t mess around.
Rollers are designed for steel cables.
This listing is identified by part number — match it to the part you're replacing.
| Brand | Mudstuck |
|---|---|
| Part No. | 4WD MUD0005 |
| Condition | New |
| Part Type | Winch |
| Rated pull | 12,000lbs / 5,443kg (single line) |
| Motor | 24V permanent magnet, 5.2hp |
| Gearbox | NGWN planetary gear, 216:1 reduction |
| Drum size | 64mm x 224mm |
| Battery leads | 1.83m |
| Rope | 27m of 9.5mm Dyneema (rated to 7,647kg) |
| Line speed | 10.8m/min |
| Amp draw under load | 360A |
| Winch weight | 28kg |
| Overall dimensions | 535mm x 162mm x 170mm |
- 24V commercial and off-road vehicles
- Heavy-duty 4x4 trucks and utes
- Trailers, recovery vehicles, and serious work use
- Demanding recovery environments
- IP67 rated – resistant to dust and water
- 24V power for more efficient, reliable pulls
- 5.2hp permanent magnet motor
- Turn clutch for fast engagement
- Field-tested in NZ for performance and durability
- Dyneema rope included for strength and safety
- Rated pull: 12,000lbs / 5,443kg (single line)
- Motor: 24V permanent magnet, 5.2hp
- Gearbox: NGWN planetary gear, 216:1 reduction
- Drum size: 64mm x 224mm
- Battery leads: 1.83m
- Rope: 27m of 9.5mm Dyneema (rated to 7,647kg)
- Line speed: 10.8m/min
- Amp draw under load: 360A
- Winch weight: 28kg
- Overall dimensions: 535mm x 162mm x 170mm
- Mudstuck 12000lb 24V Winch
- Fairlead
- Wired Remote
- Wireless Remote
- Dyneema Rope (27m)
- Plus .
Match the part number against the one you're replacing before you order. Unsure? Tell us your make, model, year and engine and we'll confirm it. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.
Specifications
- Brand
- Mudstuck
- Product type
- Accessories & Towing > Winch
- Part reference
- 4WD MUD0005
- Title
- Default Title
Vehicle compatibility
Compatibility can vary by model, production date and specification. Review the product notes or send a fitment enquiry before ordering.
Delivery & returns
Free tracked delivery within New Zealand — typically arriving in 3 to 10 working days.
