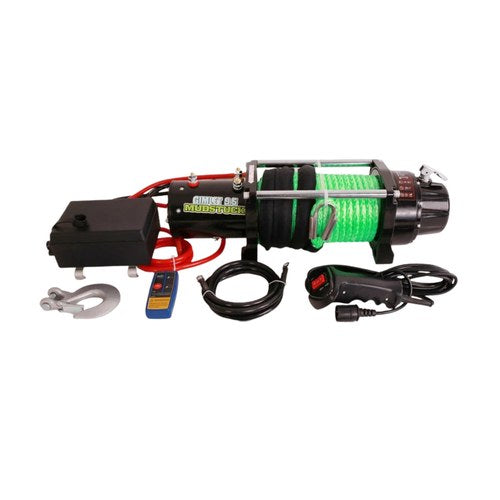

Mudstuck 9500lb Compact Winch – Power That Fits Where Others Can’t
The Mudstuck 9500lb Compact Winch delivers serious strength in a more compact body, making it perfect for vehicles with tighter winch mounting spaces. After two years of development and real-world testing with Green Motorsports, this winch has proven its mettle in New Zealand’s toughest off-road conditions.
Ideal for those needing power without bulk, this winch won’t let you down when it’s time to haul, recover or load up.
Rollers are designed for steel cables.
This listing is identified by part number — match it to the part you're replacing.
| Brand | Mudstuck |
|---|---|
| Part No. | 4WD MUD0008 |
| Condition | New |
| Part Type | Winch |
| Rated pull | 9,500lbs / 4,309kg (single line) |
| Motor | 12V permanent magnet, 5.2hp |
| Gearbox | NGWN planetary gear, 216:1 reduction |
| Drum size | 64mm x 134mm |
| Battery leads | 1.83m |
| Rope | 16m of 9.1mm Dyneema (rated to 7,341kg) |
| Line speed | 10.8m/min |
| Amp draw under load | 350A |
| Winch weight | 23kg |
| Mounting measurements | 165mm x 114mm |
| Overall dimensions | 432mm x 162mm x 170mm |
- 4WDs, utes, and trucks with limited mounting space
- Recovery jobs in rugged NZ terrain
- Off-road builds, trailers, and general lifting
- Anyone who needs serious performance in a smaller package
- Compact drum and body for tighter installs
- IP67 rated – dust and water resistant
- 12V 5.2hp motor with powerful pull
- Turn clutch for fast winching control
- Tried and tested in NZ conditions
- Includes Dyneema rope and both remote options
- Rated pull: 9,500lbs / 4,309kg (single line)
- Motor: 12V permanent magnet, 5.2hp
- Gearbox: NGWN planetary gear, 216:1 reduction
- Drum size: 64mm x 134mm
- Battery leads: 1.83m
- Rope: 16m of 9.1mm Dyneema (rated to 7,341kg)
- Line speed: 10.8m/min
- Amp draw under load: 350A
- Winch weight: 23kg
- Mounting measurements: 165mm x 114mm
- Overall dimensions: 432mm x 162mm x 170mm
- Mudstuck 9500lb Compact Winch
- Fairlead
- Wired Remote
- Wireless Remote
- Dyneema Rope (16m)
- Plus a
