Hoses & Fittings > Cross Fitting
Nuke Cross Fitting | SCR NUK0009
Part reference SCR NUK0009
- Free tracked delivery within New Zealand
- Typically arriving in 3 to 10 working days
- Prices include GST (15%)
- Fitment support: send your make, model and year
Review the product notes or send us your vehicle and replacement-part details before ordering.
Product details
Kauri Auto Parts supplies brand-new parts only — aftermarket and OE-replacement — dispatched from within New Zealand. The price you see includes GST.
1 x X-Block body with 4 x AN-8 (3/4 UNF) threads 3 x AN-8 (3/4 UNF) to AN-8 Male fittings 1 x AN-8 (3/4 UNF) to AN-10 Male fitting 4 x Viton O-ring for AN-8 (3/4 UNF) fittings

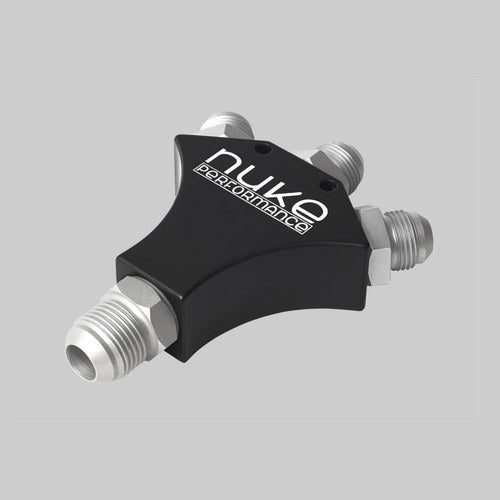

The Nuke Performance X-Block Adapter Fitting lets you divide or combine one fuel line into three with minimum flow loss. The X-block is delivered with the most popular fittings, but fittings in other sizes are available between AN-6 and AN-10 for an easy setup for your choice.
All threads are of AN-8 (3/4 UNF) and the X-Block Adapter Fitting is delivered with 3x AN-8 (3/4 UNF) to AN-8 Male fittings and 1x AN-8 (3/4 UNF) to AN-10 Male fitting.
A Viton O-ring, safe for all types of fuels, including alcoholic fuels such as E85 is included with all of these fittings.
Available in several different versions, both with exchangeable fittings and included brackets and without. Nuke Performance offers a wide range of fittings for all types of installations, and offers dividing fittings of many sizes and variations. The Y-Block and X-Block have exchangeable fittings and integrated bolt holes for easy mounting, and the Y adapters are of a slim and space-efficient design.
Confirm this part number against your vehicle's existing part before ordering.
| Brand | Nuke |
|---|---|
| Part No. | SCR NUK0009 |
| Condition | New |
| Part Type | Cross Fitting |
| Single port side thread | AN-8 (3/4 UNF), |
| Dual port side thread | AN-8 (3/4 UNF), |
| Body material | Anodized aluminum |
| Included fittings | 1x 700-01-103, 3x 700-01-102 |
| Fuel compatibility | Gasoline, Methanol, Ethanol, E85 |
| Height | 126mm (4.96") |
| Width | 93mm (3.66") |
| Depth | 29mm (1.14") |
| Weight | 234g (0.51lb) * |
| For motorsports use | YES |
| Part number / EAN | 400-01-202 / 7340209500677 |
| Single port side | AN-8 3/4 UNF |
| Tripple port side | AN-8 3/4 UNF |
Check the part number against the part you're replacing. If you'd rather we checked, tell us your make, model, year and engine. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.
