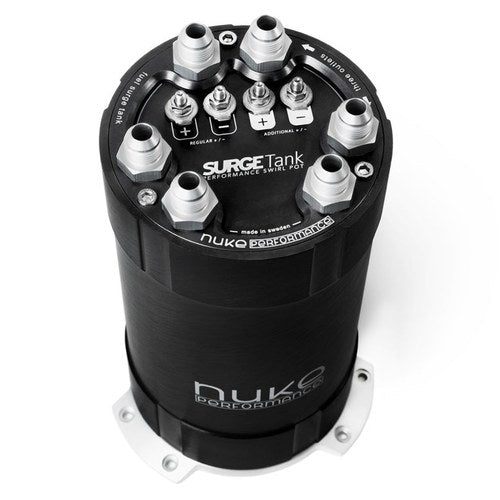

Nuke Fuel Surge Tank | SCR NUK0151

Kauri Auto Parts — brand-new aftermarket and OE-replacement parts, dispatched from within New Zealand. Every price includes GST.

1 x 3.0-liter fuel surge tank 1 x 6 bolt pattern aluminum mounting bracket 1 x Mounting bracket for triple 39mm fuel pumps 3 x 1/4 BSPP to 8mm Barb (fuel hose) fittings

The 2nd generation Nuke Performance 3.0 liter Fuel Surge Tank, now for 1, 2, or 3 internal high-pressure fuel pumps, is top quality combined with outstanding performance. This new updated version is the first of its kind specially developed and designed to mount up to three internal fuel pumps within the same unit. Every fuel pump uses its own AN-8 ORB outlet that lets you choose between the most various setups.

An extremely lightweight motorsports surge tank Every fuel pump has its own AN-8 ORB outlet 3.0 liter surge tank capacity Safe for all types of fuels, including alcoholic fuels Now with ORB threads, for a wider range of fittings

With the possibility to mount up to three high-pressure fuel pumps, this oversized fuel surge tank is ready to deliver fuel for more than 3500hp, this is the most universal fuel surge tank on the market.

Choose between a single, dual, or triple internal fuel pump setup Run one, two, or three fuel pumps individually or in two steps with multi-electrical connectors on the top lid. Designed and manufactured to handle extreme amounts of power with the same hallmark as all Nuke Performance products.

Everything you need to mount a single, dual, or triple high-pressure in-tank 39mm fuel pump is included, such as the AEM 320l, DW200, DW300, Walbro GST400, GST450, GST520, Aeromotive Stealth series, and many more. The internal billet bracket fits up to three 39mm fuel pumps.

1-3 x Deatschwerks DW200 / DW300 1-3 x AEM 320L 1-3 x Aeromotive Stealth 325 / 340 / 450 1-3 x Ti Automotive Walbro GST400 / GST450 / GST520 1-3 x many other 39mm fuel pumps...

Fuel pumps are mounted with the billet internal mounting bracket This second-generation Nuke Performance Fuel Surge Tank comes with an internal bracket for up to three internal fuel pumps with an outer diameter of 39mm, this is the most common fuel pump size and makes a perfect fit and combination for most setups. It also fits the very popular Ti Automotive, Walbro GST400, GST450, and GST520 fuel pumps and their design siblings such as Aeromotive Stealth 450.

With this setup, you can rely on maximum fuel delivery, a safe solution for your engine and setup even when the conditions are as demanding as they get. That you can mount high-flow in-tank fuel pumps without larger customization of your stock fuel tank is almost as important, this is the only setup you need. With this setup, you can deliver extreme fuel flow to your engine and thanks to the fuel surge tank over-dimensioned 3.0-liter design you will have enough fuel at all conditions and at all times.

The 2G Fuel Surge Tank 3.0 liter for internal fuel pumps works as a buffer so the fuel pumps are always supplied with fuel for high outputs as the return line from your engine routs straight back into the FST, it stays full at all times.

It comes with a billet aluminum mounting bracket with a six-bolt pattern making a secure fitment in any installation. The 2G Fuel Surge Tank 3.0 liter for internal fuel pumps version is equipped with dual step connectors, letting you choose if you want to run the different fuel pumps on different steps, fuses, or at the same time.

The Nuke Performance 2G Fuel Surge Tank 3.0 liter for internal fuel pumps is equipped with ORB threaded inlet and outlet ports. The AN-8 ORB outlet, inlet, and return ports let you choose between a wide range of fittings and adapters.

Developed with high demands from motorsports Co-developed with worldwide motorsports teams, this fuel surge tank is set to perform under all conditions and for any horsepower requirement. Used in all types of motorsports such as drag racing, drifting, GT racing, time attack, and more. Designed to stand up to the destructive properties of alcohol fuels, including methanol and ethanol.

Made in Sweden, guaranteeing the highest possible quality The 2G Fuel Surge Tank 3.0 liter for internal fuel pumps is developed, designed, and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!

Fuel Surge Tank Specifications For more information about functionality, .
