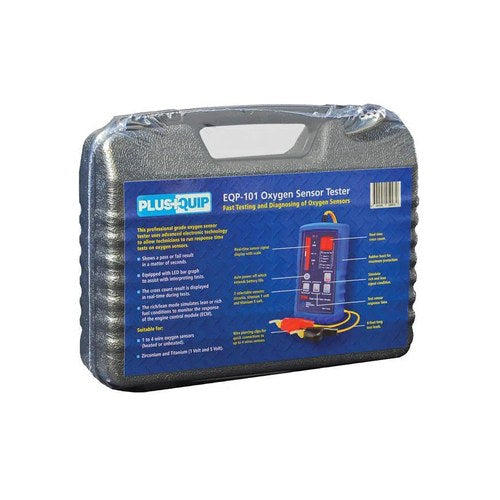

Plusquip Workshop Tool | EQP-101

Kauri Auto Parts supplies brand-new parts only — aftermarket and OE-replacement — dispatched from within New Zealand. The price you see includes GST.

Fast testing and diagnosing of oxygen sensors

This professional grade oxygen sensor tester uses advanced electronic technology to allow technicians to run response time tests on oxygen sensors.

Internally protected against power surges, overloads and reversed polarity connections.

It only requires the connection of two probe clips to the oxygen sensor wires, and the selection of the oxygen sensor type.

The sensor signal output is shown in real time on the bar graph, while a 2 digit alphanumeric display shows the sensor output cross count per second.

By pressing the ‹œTest¾ button and performing a snap throttle acceleration of the engine, it tests the response time of the sensor and shows a pass or fail result within seconds.

Confirm this part number against your vehicle's existing part before ordering.

• Sensor can be tested on or off the vehicle
• Shows a pass or fail result in a matter of seconds
• Equipped with LED bar graph to assist interpret tests
• The cross count result is displayed in real time during tests
• The rich/lean mode simulates lean or rich fuel conditions to monitor the response of the engine control module (ECM)
• Advanced connection detection: automatically detects common wire misconnections like ground, heater wires, disconnected test leads, reversed polarity and more, and displays these on the alphanumeric display
• Provides instant readings and testing capabilities of the output of the sensor
• Test sensor response time. Diagnoses lazy¯½ (slow response) sensors, which may not set DTCs, but cause drivability problems
• Excellent preventive maintenance tool, to diagnose sensors that need to be replaced before they set DTCs or completely fail
• Rugged electronics make it almost impossible to damage the instrument, even if wrongly connected
• No software to upgrade
• Does not require special setups or in depth knowledge to use
• 1 to 4 wire oxygen sensors (Heated or unheated)
• Zirconium and Titanium (1 Volt and 5 Volt systems)
• 42 V Ready: can also be used in new generation vehicles with mixed or single 42 Volt systems.
• EQP-101 Oxygen Sensor Tester
• Two piercing clips with 6 ft. cables
• Protective rubber holster
• Polypropylene carrying case
• 1 x 9 Volt alkaline battery
• User¾s handbook
• Input Range: 0 to 5 Volt Input Protection: +/- 48 VDC Max, current limited Indicators: 20 Segment bar graph and 2 digits alphanumeric display Bargraph Scale: 0 to 1 Volt or 0 to 5 Volt Cross Count: 0.1 to 10 CPS Auto Detection: Detects reversed polarity, ground, heater and open connection Response test: < 100 ms Pass +/- 5 ms > 100 ms Fail +/- 5 ms Test Leads: 2 wire piercing alligator clips with insulating boot, and 6.5 ft cables Power Source: Standard 9-volt alkaline battery (factory included) Battery Life: Approx. 25 hrs, with low battery indicator and auto power off Internally protected against power surges, overloads and reversed polarity connections.
• High temperature silicone 16 AWG test wires and rugged piercing clamps.

Check the part number against the part you're replacing. If you'd rather we checked, tell us your make, model, year and engine. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.

Compatibility can vary by model, production date and specification. Review the product notes or send a fitment enquiry before ordering.

Free tracked delivery within New Zealand — typically arriving in 3 to 10 working days.
