Fuel System > Fuel Pressure Regulator
Raceworks EFI Fuel Pressure Regulator 800HP, AN-10 | FPR-502BK
Part reference FPR-502BK
- Free tracked delivery within New Zealand
- Typically arriving in 3 to 10 working days
- Prices include GST (15%)
- Fitment support: send your make, model and year
Review the product notes or send us your vehicle and replacement-part details before ordering.
Product details
Kauri Auto Parts supplies brand-new parts only — aftermarket and OE-replacement — dispatched from within New Zealand. The price you see includes GST.

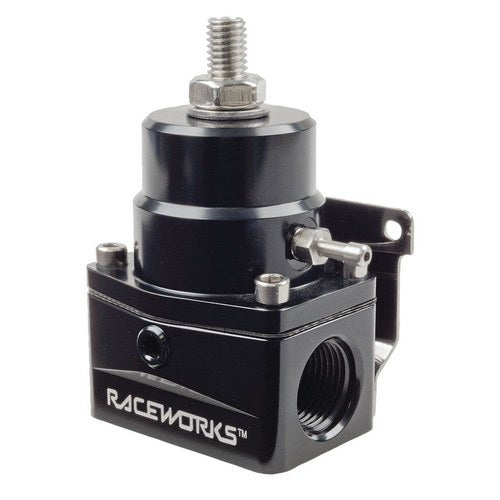

Raceworks three-port EFI fuel pressure regulator rated for 800HP. It has two AN-10 inlets, an AN-10 return and a 1/8 NPT gauge port.
Base pressure ranges from 40-75PSI (2.75-5.2Bar), with boost reference at a 1:1 ratio through a 1/16 NPT port. It is E85 and pump-fuel safe, with a 550LPH bypass rate.
Dimensions without fittings are 101mm high, 62mm wide and 60mm deep.
This listing is identified by part number — match it to the part you're replacing.
| Brand | Raceworks |
|---|---|
| Part No. | FPR-502BK |
| Condition | New |
| Part Type | Fuel Pressure Regulator |
| Specifications | Part Number |
| 2 x AN-10 Inlets and AN-10 Return. 1/8 NPT Gauge Port. Base Pressure Range of 40-75PSI (2.75-5.2Bar). Boost Referenced (1:1 Ratio). Boost Reference Port is 1/16 NPT. Dimensions are 101mm high, 62mm wide and 60mm deep with no fittings. E85 and PUMP Fuel Safe. Bypass Rate of 550LPH. | FPR-502BK |
| AN-6 | RWF-920-06-10BK |
| AN-8 | RWF-920-08-10BK |
| AN-10 | RWF-920-10BK |
| AN-12 | RWF-920-12-10BK |
| 5/16 | RWF-414-10-05BK |
| 3/8 | RWF-414-10-06BK |
| 1/2 | RWF-414-10-08BK |
| 5/8 | RWF-414-10-10BK |
| Int Hex Plug | RWF-814-10BK |
| Ext Hex Plug | RWF-813-10BK |
- Two AN-10 inlets and one AN-10 return
- Base pressure range: 40-75PSI (2.75-5.2Bar)
- Boost referenced at a 1:1 ratio
- 1/8 NPT gauge port and 1/16 NPT boost reference port
- E85 and pump-fuel safe
- Bypass rate: 550LPH
Check the part number against the part you're replacing. If you'd rather we checked, tell us your make, model, year and engine. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.
Specifications
- Brand
- Raceworks
- Product type
- Fuel System > Fuel Pressure Regulator
- Part reference
- FPR-502BK
- Title
- Default Title
Vehicle compatibility
Compatibility can vary by model, production date and specification. Review the product notes or send a fitment enquiry before ordering.
Delivery & returns
Free tracked delivery within New Zealand — typically arriving in 3 to 10 working days.
