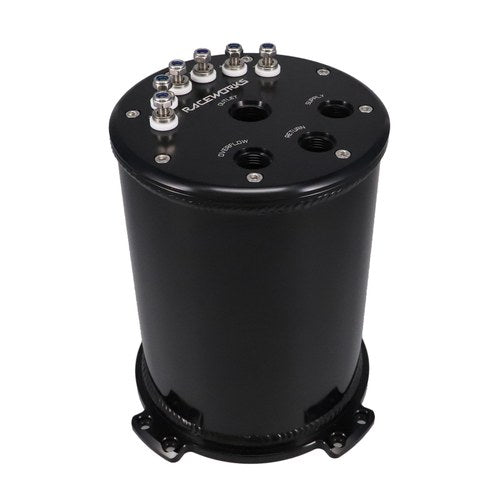

Raceworks Triple-Pump Fuel Surge Tank 2.8L | ALY-059BK

You're buying from Kauri Auto Parts: new aftermarket and OE-replacement parts, dispatched from within New Zealand, with GST already in the price.

Raceworks fuel surge tank configurable for single, twin or triple 38MM-40MM in-tank pumps. Its AN-10 ORB feed uses a vortex design to promote flow, with AN-8 ORB supply, return and overflow ports.

The tank includes 10mm barb inlet fittings, PTFE hose, three fuel pump strainers and triple stainless steel electrical terminal sets for staged pump operation.

Viton O-rings and Teflon in-tank hose are suitable for E85. Two O-ring sets accommodate 38mm and 39-40mm pumps, with the 39-40mm set pre-fitted; lubricate pumps for installation.

Confirm this part number against your vehicle's existing part before ordering.

• Capacity: 2.8L single pump, 2.6L twin pump or 2.4L triple pump
• Dimensions: 215mm high, 140mm diameter and 195mm deep
• AN-10 ORB feed and AN-8 ORB supply, return and overflow
• Includes 10mm barb fittings, PTFE hose and 3 pump strainers
• Fits 38MM-40MM in-tank pumps
• Single, twin or triple pump configuration

This listing is identified by part number. Tell us your make, model, year and engine if you'd like it confirmed before you buy. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.

Compatibility can vary by model, production date and specification. Review the product notes or send a fitment enquiry before ordering.
