Tilton Pedal Assembly | RCP TIL72-618

Kauri Auto Parts — brand-new aftermarket and OE-replacement parts, dispatched from within New Zealand. Every price includes GST.

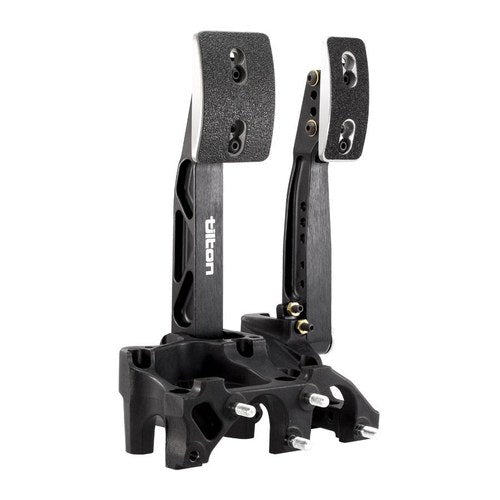

Tilton’s 600-Series 2-pedal Underfoot Assembly (Brake & Throttle) is perfect for racers who need additional space in the cockpit. Unlike traditional floor-mount pedal assemblies with forward-facing master cylinders, the underfoot pedal assembly features a rear-facing master cylinder arrangement. This enables the pedals to be mounted further forward, which allows a greater range of driver seating positions. This, along with over a hundred pedal pad configurations and an adjustable pedal ratio, makes the new underfoot pedal assembly compatible with just about any racer in any application. The 2-pedal brake/throttle assembly is ideally suited to newer cars with dual-clutch transmissions, and therefore no need for a clutch pedal.

Forged aluminum pedals and an aluminum frame give the 600-Series underfoot pedal assembly rigid and lightweight support for even the most grueling applications. Included with the assembly is a large 7/16”-20 balance bar ( ), which minimizes flex and provides a solid pedal feel. Action on the pedals is kept smooth and consistent with low friction oil-impregnated bushings on the pedal pivots. For additional customization, the 600-Series 2-pedal underfoot assembly is also compatible with customer-supplied false floors and heel rests. The optional Tilton are designed for use with either mechanical or drive-by-wire throttle systems.

The new 600-Series underfoot pedals are also available in a (P/N 72-616) configuration for use with traditional single-clutch transmissions.

The underfoot pedals are designed to accept Tilton’s .

Confirm this part number against your vehicle's existing part before ordering.

• Forged aluminum pedals engineered for high rigidity and low weight
• Lightweight and rigid aluminum frame designed to accept customer-supplied false floor/heal rest
• Large 7/16”-20 balance bar minimizes flex and provides a solid pedal feel/response
• Aluminum foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Adjustable pedal ratio (5.4:1-6.9:1) enables fine tuning of braking system
• Low friction oil-impregnated bushing on pedal pivots
• Accepts Tilton

Match the part number against the one you're replacing before you order. Unsure? Tell us your make, model, year and engine and we'll confirm it. Sourced from New Zealand suppliers. Orders are processed in 1 to 3 working days, and most arrive within 3 to 10 working days of your order — no customs, no international freight. New Zealand consumer law applies to every order, and our refund policy includes 30-day change-of-mind returns. If a part turns up faulty or isn't as described, we'll put it right.

Compatibility can vary by model, production date and specification. Review the product notes or send a fitment enquiry before ordering.
